SKC Thoracic Parallel Particle Impactor (PPI) Samplers are similar to traditional 37-mm filter cassettes in that they collect dust on standard 37-mm filters. That’s where the similarity ends! The impaction-based PPI Samplers are designed to provide a precise match to the ISO 7708/CEN criteria in a unique way.
Features
- Collection efficiency precisely matches ISO 7708/CEN size-selection criteria
- Operate at 2 L/min for optimal sampling of metalworking fluids by NIOSH Method 5524 and thoracic TLV sampling of cotton dust or hard metals containing cobalt (Co) and tungsten carbide as Co
- Conductive aluminum
- Disposable PPI models are available
Specifications
Performance Profile
| Sampling Rate |
2 L/min |
| Sample Pump |
AirChek Series |
| Sample Time |
Dependent on method used |
| Sample Media |
37-mm, Quartz filter or 37-mm, 2.0-µm PTFE filter (NIOSH
5524) or 37-mm, 0.8-µm MCE filter
Back pressure on PTFE filters can vary within the same lot.
|
| Tubing |
1/4-in ID |
| Impaction Substrate |
Four 3/8-in diameter pre-oiled porous plastic discs |
| Analysis |
Gravimetric or chemical |
| Dimensions |
Height: (clip to exhaust): 4.25 in
(10.8 cm)
Diameter: 1.8 in (4.6 cm)
Depth: 1.2 in (3.0 cm) |
| Weight |
3.3 oz (93.6 gm) |
Order
| Cat. No. |
Description |

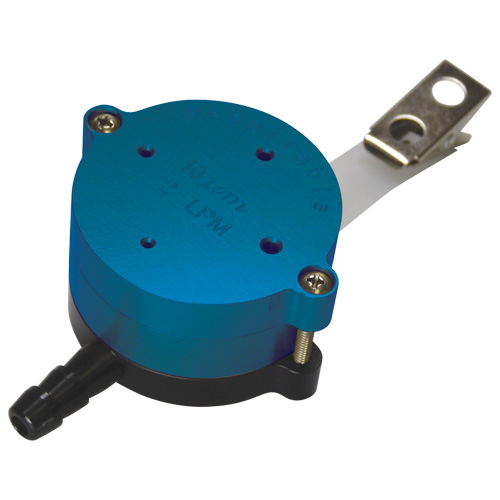

| 225-381 | Parallel Particle Impactor (PPI), Thoracic, Aluminum, 2 L/min
Parallel Particle Impactor (PPI), aluminum, four stages, for thoracic sampling at 2 L/min. The PPI provides the closest match to the entire ISO 7708/CEN respirable or thoracic curves compared to any other sampler available.
Requires substrates, filters, and supports, which are purchased separately
|
Accessories
| Description |
Cat. No. |
Multi-purpose Calibration Jar
Multi-purpose Calibration Jar, 32-ounce polypropylene, contains a quick-screw cap and barbed fitting for easy use; allows for calibration of GS Cyclones, Reusable PPIs, and Low-volume PUF tubes. Multi-purpose Calibration Jar Operating Instructions (PDF) |
225-111 |
Quartz Filters, 1.2 µm, 37 mm, Type R-100
Quartz Filter, 1.2 µm nominal, 37 mm, 380 µm thick, binder-free, heat treated, Type R-100, manufactured of 100% quartz, no support pad included, pk/100 |
225-1827 |
Stainless Steel Support Screen, 37 mm
Support Screen, 37 mm, stainless steel, wide mesh |
225-26 |
Cellulose Support Pad, pk/100
Support Pad, cellulose, 37 mm, pk/100 |
225-27 |
PTFE Filters, 2.0 µm, 37 mm
PTFE Filter with laminated PTFE support, 2.0 µm, 37 mm, support pad included, pk/50 |
225-27-07 |
PPI Impaction Substrates, Porous Plastic, 3/8 inch
Impaction Substrates, 3/8-inch diameter porous plastic discs, pre-oiled, ready to use, disposable, for use with Parallel Particle Impactor (PPI), pk/200 Requires four discs for each sample |
225-388 |
MCE Filters, 0.8 µm, 37 mm
MCE Filter, 0.8 µm, 37 mm, support pad included, pk/100 |
225-5 |
Filter-Keeper, 37 mm, with Labels
Filter-Keeper, 37-mm filter storage and archiving system with labels, pk/10 |
225-8303A |
Non-serrated Forceps, Stainless Steel
Forceps, stainless steel, non-serrated flat tips to prevent damage to filter membranes |
225-8371 |
